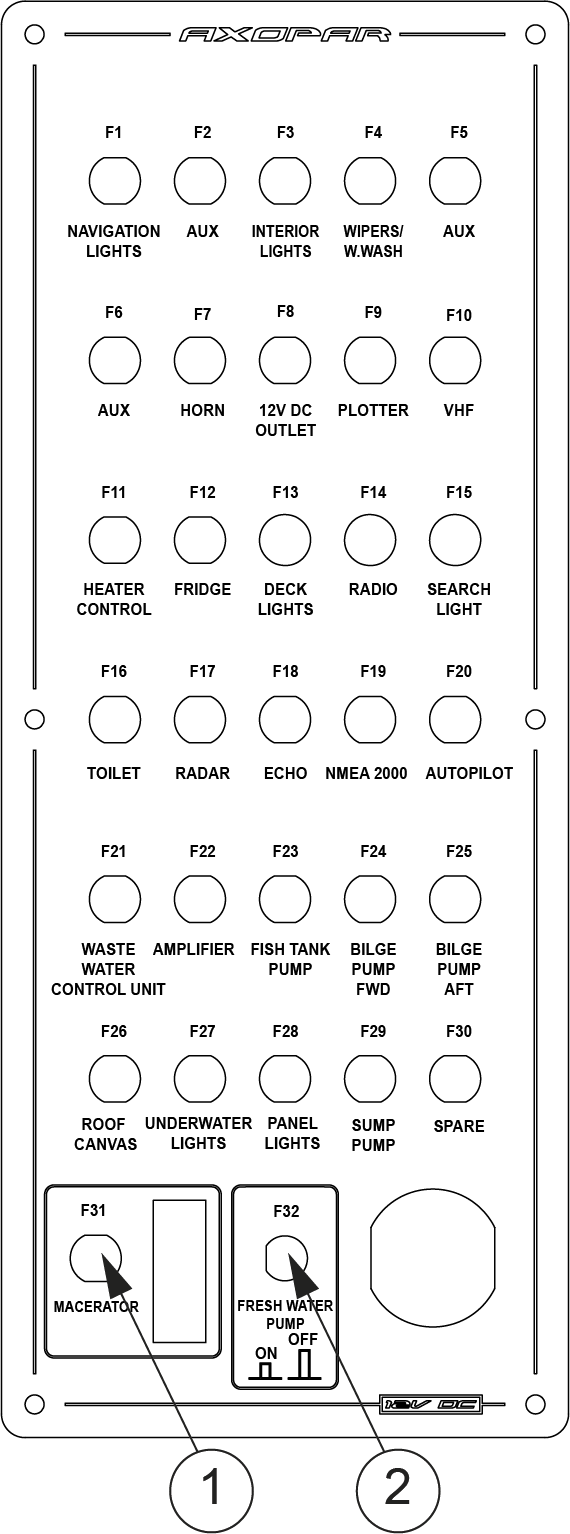

The fuse panel includes fuses for the boat’s equipment. The fuse panel is located in the toilet room.
The fuses are in the form of trip switches that break the circuit and spring up when tripped. Do not reset the switch before you have found out the reason for the breaker tripping. After that press the switch back down.
The panel has a combined switch and fuse for the macerator and fresh water pump. The fuse panel also has a 12 V output.
Before connecting an electric circuit, make sure that the circuit is not damaged and that there will be no short circuit or a fire caused by possible damages in the electric circuit. Any damaged equipment must be maintained or changed before they are again taken into use.
- (1)
-
Macerator pump switch and fuse
- (2)
-
Fresh water pump switch and fuse
