The fresh water system consists of a fresh water tank, pump and accumulator. The boat may also be equipped with a water supply point in the galley and a deck shower and a water supply point for the wet bar.
The tank is located under front deck. The pump and hydraulic accumulator are next to the tank. The fresh water tank is filled via the inlet pipe on the foredeck.
The fresh water system is turned on by switching on the fresh water pump. The pump switch is located on the fuse panel.
The system maintains a working pressure automatically with the assistance of a hydraulic accumulator, which is why the pump does not need to be shut after use.
Switch the system off when leaving the boat. Do not forget to check filter in the pump regularly.
The dealer is responsible for disinfecting the fresh water tank before sale.
The water from the system is not meant for drinking.
The fresh water system must be thoroughly emptied for winter storage. It is not recommended to use any anti-freeze products in the fresh water system.

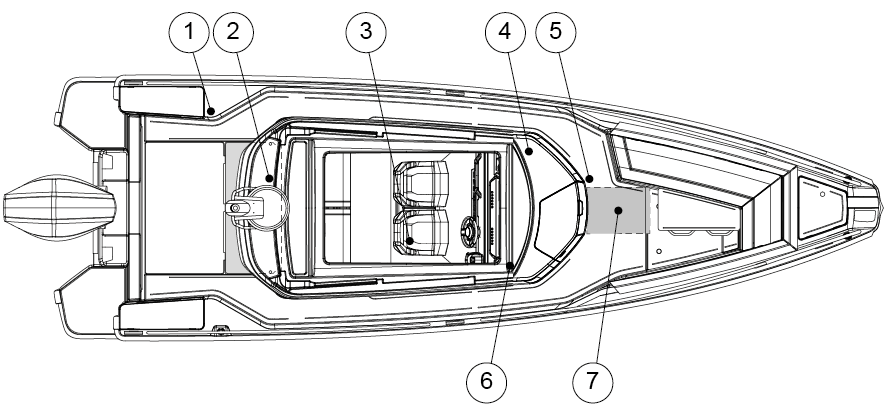

- (1)
-
Deck shower
- (2)
-
Wetbar tap
- (3)
-
Galley tap
- (4)
-
Fresh water pump switch
- (5)
-
Water inlet fitting
- (6)
-
Toilet tap
- (7)
-
Water tank and pump
