6.6.1 Fastening points

Fastening points (or cleats) are located both at the stern, midship and bow.
  • When anchoring or towing, the forward force is 32.2 kN.

  • When mooring the forward force is 26.3 kN.

  • When mooring the rearward force is 22.5 kN.

(1)

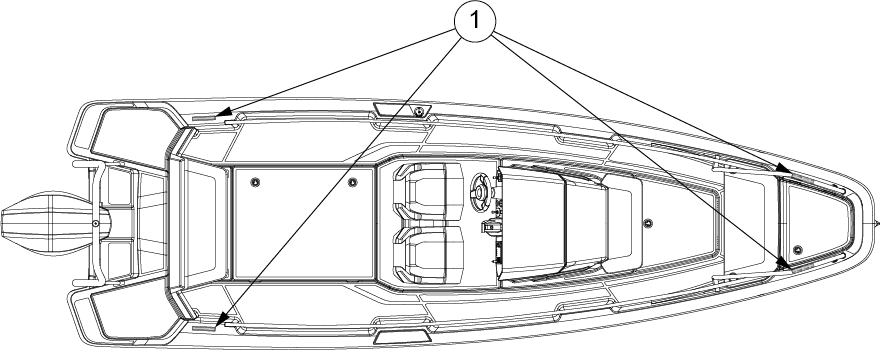

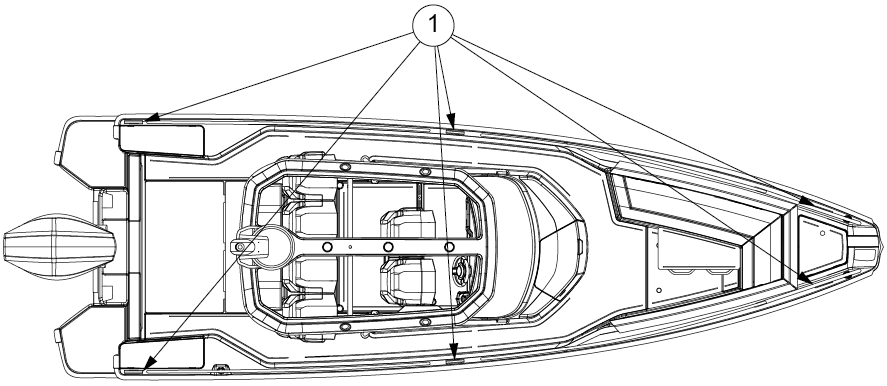

Fastening points
