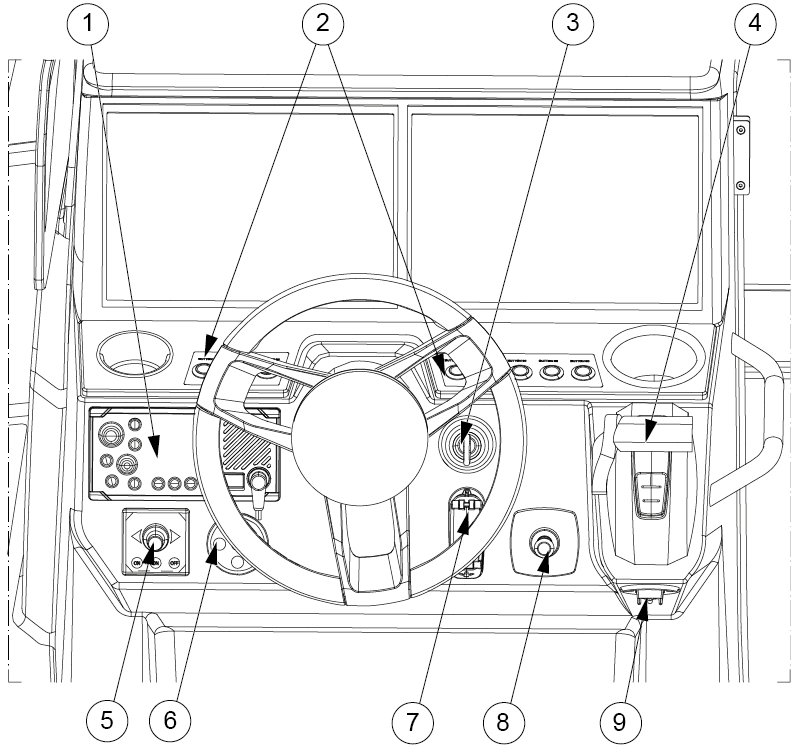

The controllers are situated so that the driver can easily manage them from the steering console.
The location and quantity of the devices depend on what optional equipment and engine models have been chosen. See the device manuals for further information on the devices.
- (1)
-
VHF radio
- (2)
-
Steering console switch panel
- (3)
-
Mercury key switch
- (4)
-
Engine remote control
- (5)
-
Trim tabs joystick
- (6)
-
Audio system remote control
- (7)
-
USB charging port
- (8)
-
Bow thruster control
- (9)
-
Lanyard stop switch
