6.6.1 Fastening points

Fastening points (or cleats) are located both at the stern, midship and bow.

  • When anchoring or towing, the forward force is 51.8 kN.

  • When mooring the forward force is 42.3 kN.

  • When mooring the rearward force is 36.1 kN.

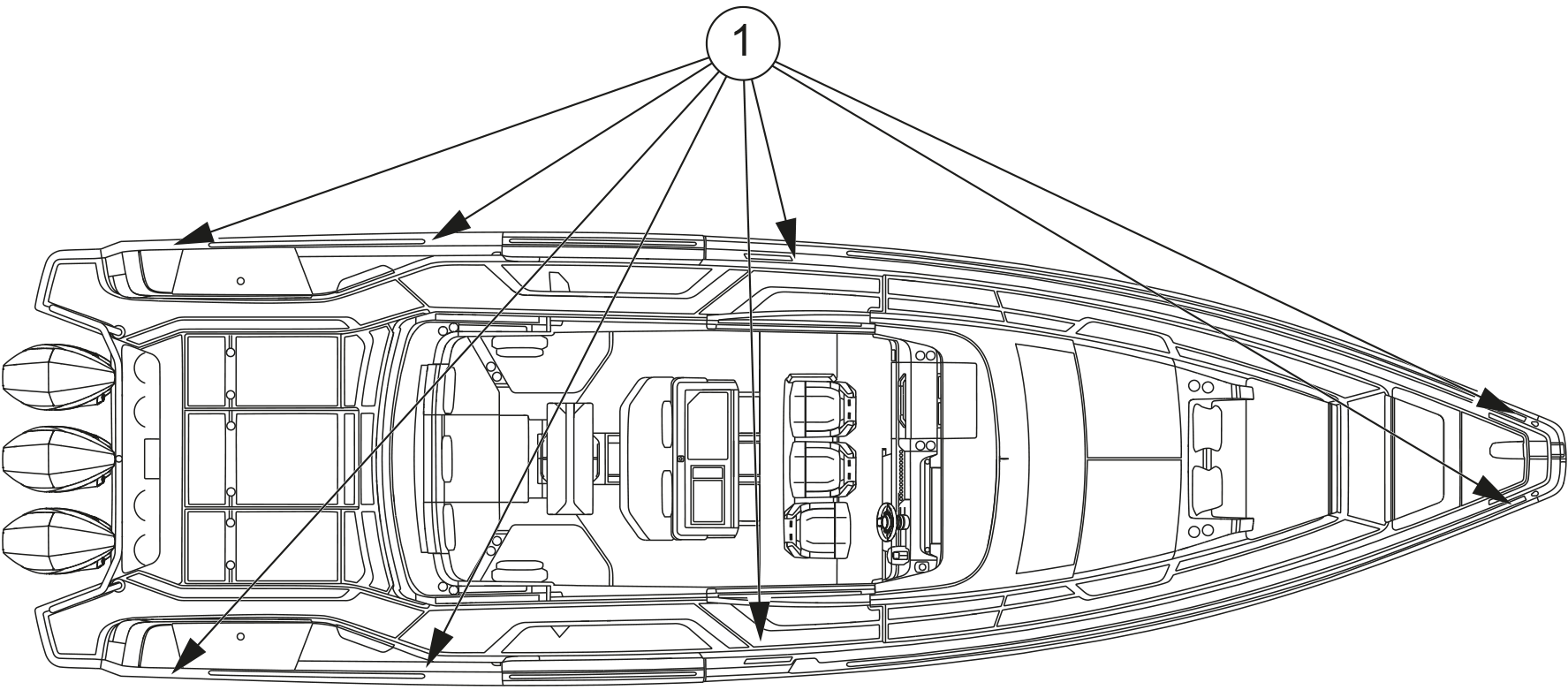

(1)

Fastening points
