The fresh water system consists of two fresh water tanks joined with connecting pipe, pump, and filter. The fresh water tank is filled via the filling cap.
The fresh water system is turned on by switching on the fresh water pump. The system maintains a working pressure automatically, which is why the pump does not need to be shut after use.
-
Switch off the system when the boat is left unmanned.
-
Check the filter regularly.
Antifreeze is added during production phase of the boat, and the dealer is responsible for disinfecting the fresh water tank before sale.
The water from the system is not meant for drinking.
The fresh water system must be thoroughly emptied for winter storage.
It is not recommended to use any anti-freeze products in the fresh water system.

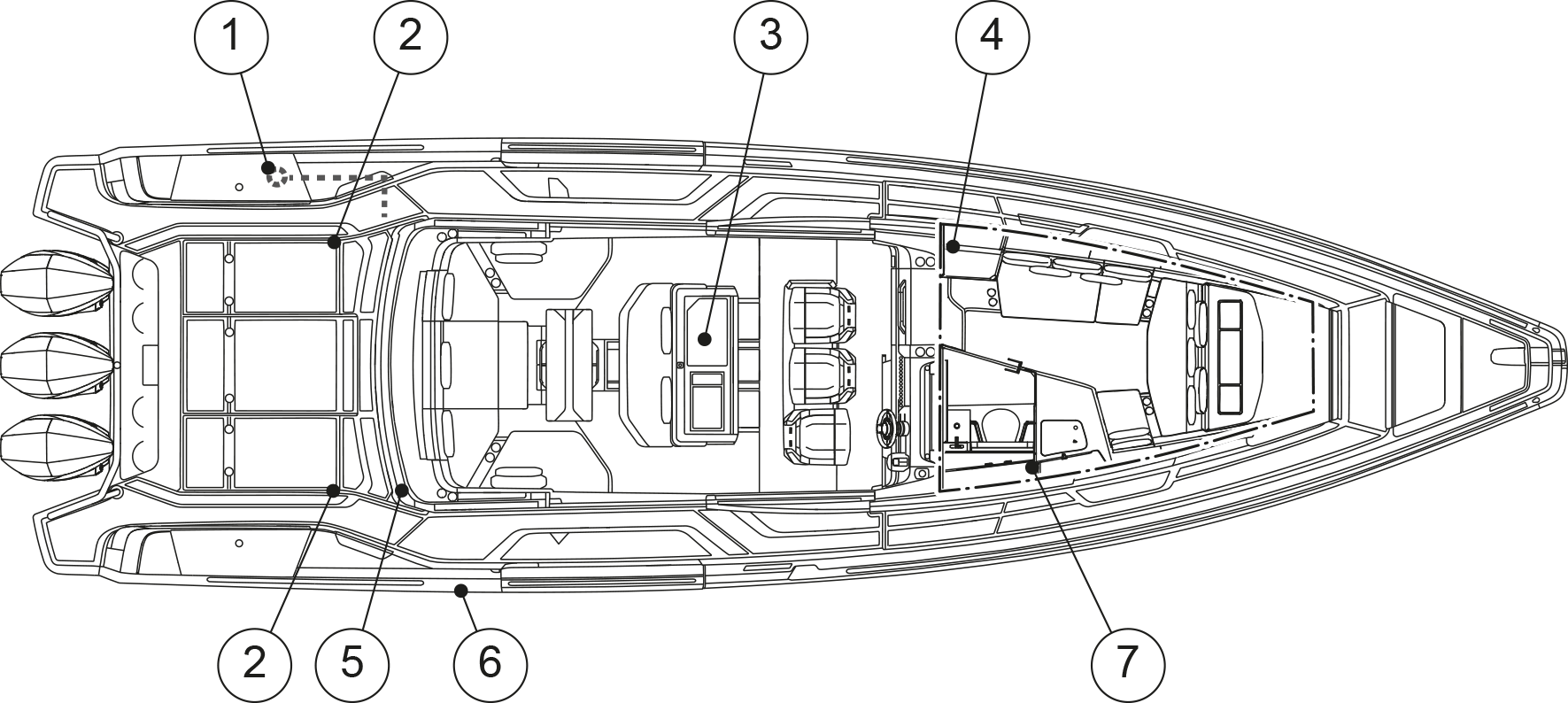

- (1)
-
Deck shower
- (2)
-
Fresh water tank
- (3)
-
Wet bar tap
- (4)
-
Switch for water system
- (5)
-
Fresh water pump
- (6)
-
Fresh water filling cap
- (7)
-
Front cabin tap
