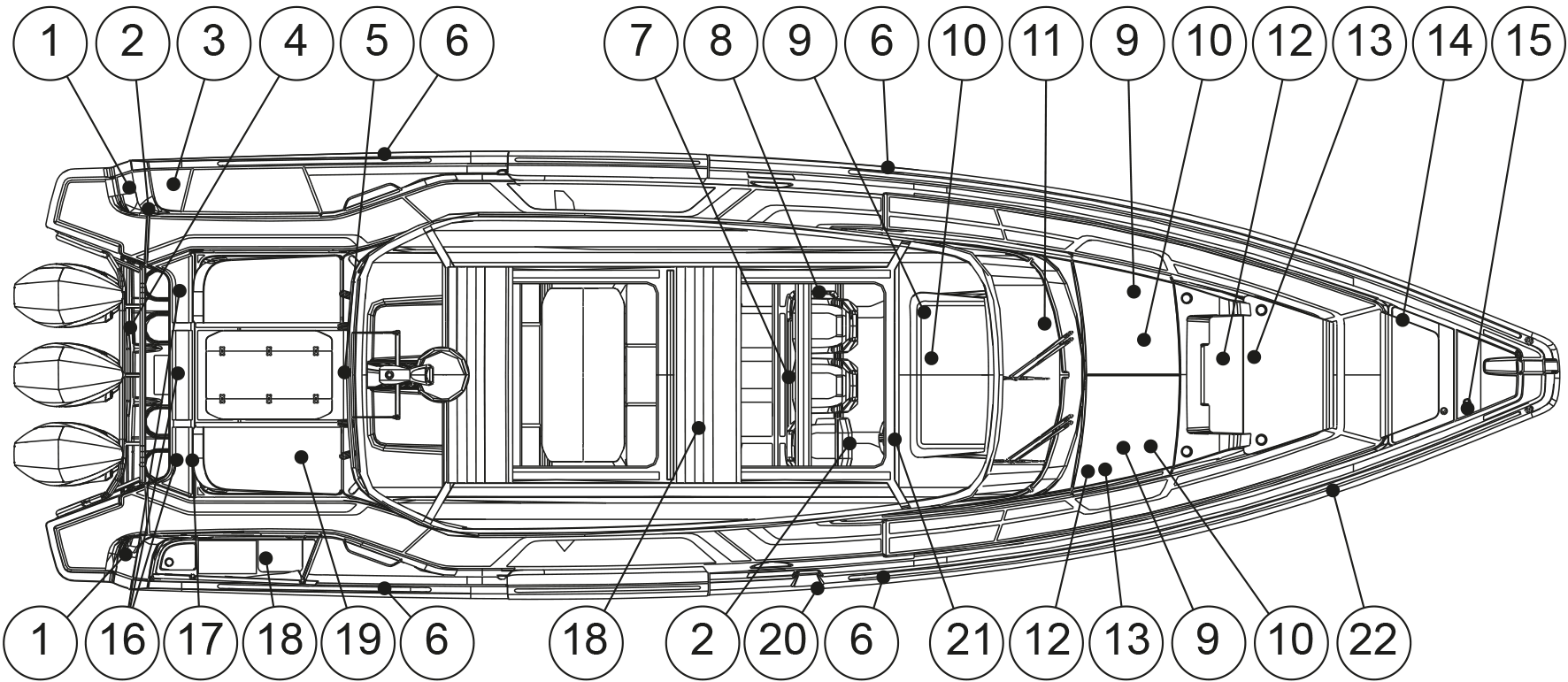

Position |
Label |
Description |
|---|---|---|
|
1 |
|
Warning Rotating propeller may cause serious injury or death. Do not approach or use ladder when engine is running. |
|
1 |
|
Danger Carbon monoxide (CO) can cause brain damage or death. Engine and generator exhaust contains odorless and colorless carbon monoxide gas. Carbon monoxide will be around the back of the boat when engines or generators are running. Move to fresh air if you feel nausea, headache, dizziness, or drowsiness. |
|
1 |
|
Ask the captain before entering the water The boat has a Skyhook feature which automatically holds the boat in position. When Skyhook is activated:
Unless the Captain gives you permission:
|
|
2 |
|
Fire extinguisher |
|
3 |
|
Discharge of oil prohibited The federal water pollution control act prohibits the discharge of oilor oily waste into or upon the navigable waters of the United States, or the waters of the contiguous zone, or which may affect natural resources belonging to, appertaining to, or under the exclusive management authority of the Unites States, if such discharge causes a film or discoloration of the surfaces of the water or causes a sludge or emulsion beneath the surface of the water. Violators are subject to substantial civil penalties and/or criminal sanctions including fines and imprisonment. |
|
3 |
|
Liquids here. It is illegal for any vessel to dump plastic trash anywhere in the ocean or navigable waters of the United States. Annex V of the Marpol Treaty is an international law for a cleaner, safer marine anvironment., Violation of these requirements may result in civil penalty up to $25,000, fine and imprisonment. U.S. lakes, rivers, bays, sounds and 3 miles from shore Illegal to dump plastic & garbage, paper, metal, rags, crockery, glass, dunnage, food. 3 to 12 miles Illegal to dump plastic, dunnage, lining & packing materials that float. Also if not ground to less than one inch: paper, crockery, rags, metal, glass, food 12 to 25 miles illegal to dump plastic, dunnage, lining & packing materials that float Outside 25 miles illega do dump plastic State and local regulations may further restrict the disposal of garbage. |
|
4 |
|
Warning Ski pole must be secured when in use. Tow rope may backlash into cockpit. Do not use to tow items such as tubes or other towables. Max tow load capacity is 130 kg. |
|
5 |
|
Danger Fore and aft sun pads should not be used when vessel is under way. |
|
6 |
|
Fastening point |
|
7 |
|
Warning Avoid serious injury or death. Unexpected seat rotation may cause ejection of occupant. Lock swivel when speed exceeds 5 mph. |
|
8 |
|
Caution If switch is turned off while engine is running the alternator will be damaged. |
|
9 |
|
Emergency exit |
|
10 |
|
Warning Running boat with door open could induce exhaust fumes into the cabin. See the owner's manual for instructions concerning carbon monoxide. |
|
10 |
|
Keep shut wile underway. |
|
11 |
|
Waste tank shutoff valve |
|
12 |
|
Danger Leaving window open could induce exhaust fumes into cabin resulting in severe personal injury or death. |
|
13 |
|
Warning Watertight closure. Keep shut when under way.4 |
|
14 |
|
Warning Keep hands out of machinery. Follow up instructions for remote control enabling. |
|
15 |
|
Warning Electrical shock and fire hazard. Failure to follow these instructions may result in injury or death. (1) Turn off the boat's shore power connection switch before connecting or disconnecting the shore power cable. (2) Connect shore power cable at the boat first. (3) If polarity-warning indicator is activated, immediately disconnect cable. (4) Disconnect shore power cable at shore outlet first. (5) Close shore power inlet cover tightly. Do not alter shore power cable connectors |
|
15 |
|
Pay attention to the warnings and read the manual. |
|
16 |
|
Warning No ventilation is provided. Fuel vapors are a fire and explosion hazard. To avoid injury and death, do not store fuel or flammable liquids here. |
|
17 |
|
Warning Installation of maintenance free AGM batteries are only allowed in this area. |
|
18 |
|
Warning Do not close the wetbar lid until the grill has completely cooled down. |
|
19 |
|
Warning Carbon monoxice (CO) can cause brain damage or death. Engine and generator exhaust contains odorless and colorless carbon monoxide gas. Signs of carbon monoxide poisoning include nausea, headache, dizziness, drowsiness, and lack of consciousness. Get fresh air if anyone shows signs of carbon monoxide poisoning. See owner's manual for information regarding carbon monoxide poisoning. |
|
20 |
|
Warning Gasoline vapors are explosive! Avoid serious injury or death from fire or explosion, resulting from leaking fuel. Inspect system for leaks at least once a year. Contents can be under pressure. Open slowly in a well ventilated aread. The use of fuels containing ethanol higher than 10% (E-10) can damage your engine or fuel system and will void the warranty. Never use (E-85). Open flame appliances can ignite gasoline vapors causing death or injuries from the fire or explosion. Turn off all open flame appliances when refueling. |
|
20 |
|
Warning Gasoline vapours may cause fires or explosions. Do not overfill fuel tank.. Keep the craft away from open flames and sparks. Do not start craft if liquid gasoline or vapours are present. Always replace engine cover (or seat) before starting. Warning Avoid serious injury or death from fire or explosion resulting from leaking fuel. Inspect system for leaks frequently. |
|
21 |
|
NMMA certificate |
|
21 |
|

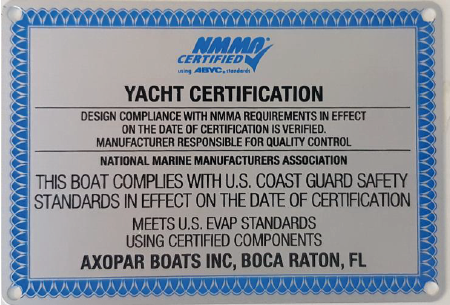

Certification plate US Design compliance with NMMA requirements and US Coast Guard safety standards. Meets EVAP standards using certified components |
|
21 |
|
Warning Before activating Skyhook: 1. Check that no one is in the water. 2. Tell passengers not to enter water. Skyhook makes the propellers spin. This can injure swimmers. |
|
21 |
|
Warning Use caution with skier in tow as tow rope may backlash into the cockpit when released. |
|
21 |
|
Warning Qualified operator to be in control at all times. Operation by an unqualified operator can cause loss of control. This may result in severe injury, death, or property damage. Boat stability and handling will change with weight disctribution. Read owners manual before use. |
|
21 |
|
Warning Attach shutdown switch lanyard to a qualified operator while engine is in operation. Uncontrolled boat may cause injury or death. Read owner's manual before use. |
|
21 |
|
Warning Visibility from the seated position at this helm station is limited. Avoid serious injury or death from collisions. Operation from a standing position may be necessary to maintain lookout as required by rules of the road. Reas owners manual. |
|
21 |
|
Boatman's checklist For maximum enjoyment and safety, check each of these items before you start your engine: - Drain plug (Securely in place?) - Life-saving devices (One for every person on board?) - Steering system (Working smoothy and properly?) - Fuel system (Adequate fuel? Leaks? Fumes?) - Battery (Fully charged? Cable terminals clean and tight?) - Engine (In neutral?) - Capacity plate (Are you overloaded or overpowered?) - Electrical equipment (Lights, horn, pump, etc?) - Emergency gear (Fire extinguisher, bailer, paddle, anchor & line, signaling device, tool kit, etc.?) |
|
21 |
|
Warning Rotating propeller may cause serious injury or death. Shut off engine when near persons in water. |
|
21 |
|
Warning Carbon monoxide (CO) can cause brain damage or death. Engine and generator exhaust contains odorless and colorless carbon monoxide gas. Signs of carbon monoxide poisoning include nausea, headache, dizziness, drowsiness and lack of consiousness. Get fresh air if anyone shows signs of carbon monoxide poisoning. See owner's manual for information regarding carbon monoxide poisoning. |
|
21 |
|
Warning Attach shut down switch lanyard to qualified operator while engine is in operation. Uncontrolled boat may cause injury or death. Read owners manual before use. |
|
22 |
|
Warning Avoid personal injury. Stay inside deck rails (and gates) when boat is underway. |
