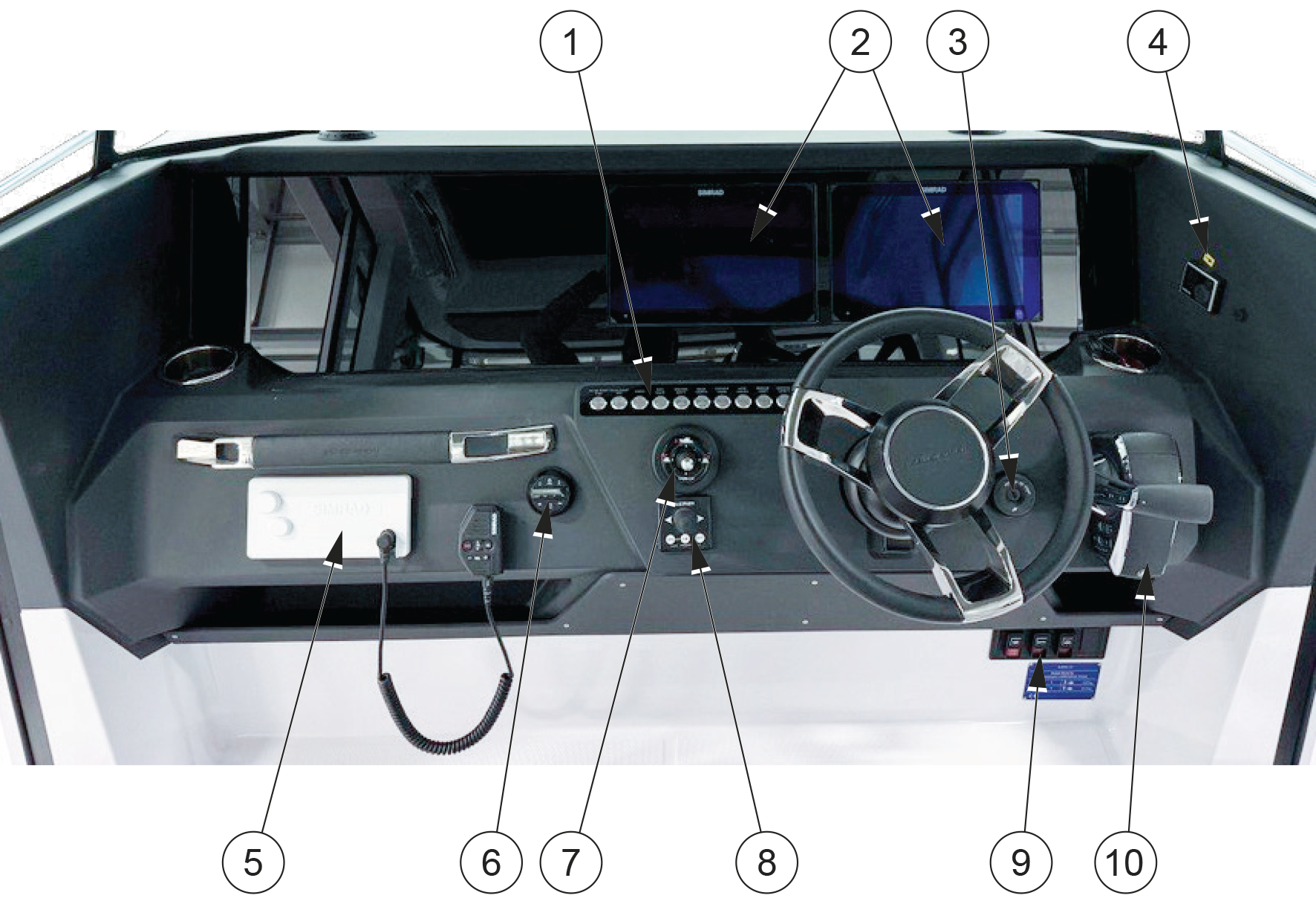

The controllers are situated so that the driver can easily manage them from the steering console.
The location and quantity of the devices depend on what optional equipment and engine models have been chosen. See the device manuals for further information on the devices.
- (1)
-
Steering console switch panel
- (2)
-
Chart plotters (second one optional)
- (3)
-
Ignition key
- (4)
-
Heater control (optional)
- (5)
-
VHF radio
- (6)
-
Audio remote (optional)
- (7)
-
Trim tabs control
- (8)
-
Bow thruster control
- (9)
-
Remote main switches
- (10)
-
Engine remote control
