Bilge pump output
The manual and automatic bilge pump output exceeds the minimum of 15 liters (4 gallons) per minute.
Bilge pump locations
The manual bilge pump's control handle is located in the starboard side fender storage in the aft deck.
The electric bilge pumps are submersible.
One electric bilge pump is located under the berth of the aft cabin.
The second electric bilge pump can be accessed through the multicabin. The electric pumps are by default in automatic mode and pump out the bilge once the float-switch is triggered. The electric bilge pumps can also be started manually from the boat’s main control panel.

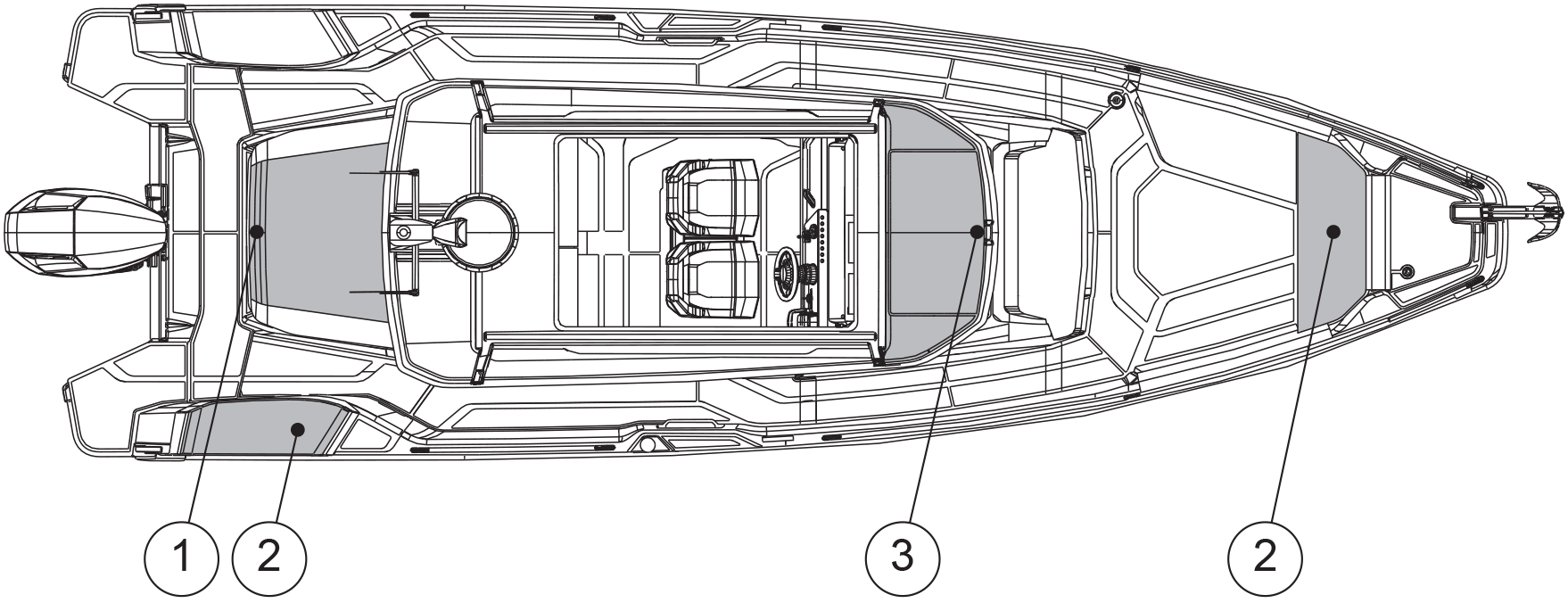

- (1)
-
Aft electric bilge pump
- (2)
-
Manual bilge pump
- (3)
-
Front electric bilge pump
