3.6 Boat layout

The boat has several deck options. The layout of the equipment and the technical components may vary depending on the chosen accessories.

The standard boat has a flat aft deck with stowage underneath.

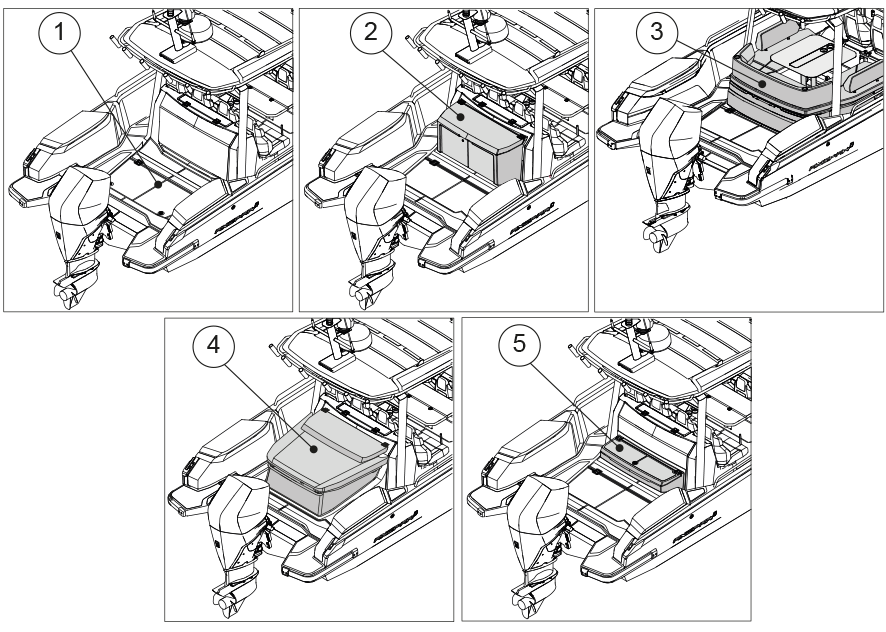

The stowage can be replaced with optional extra equipment such as an aft cabin, a storage bench, a wet bar or U-sofa.

(1)

Open aft

(2)

Wet bar

(3)

U-sofa

(4)

Aft cabin / multi-storage

(5)

Aft deck bench

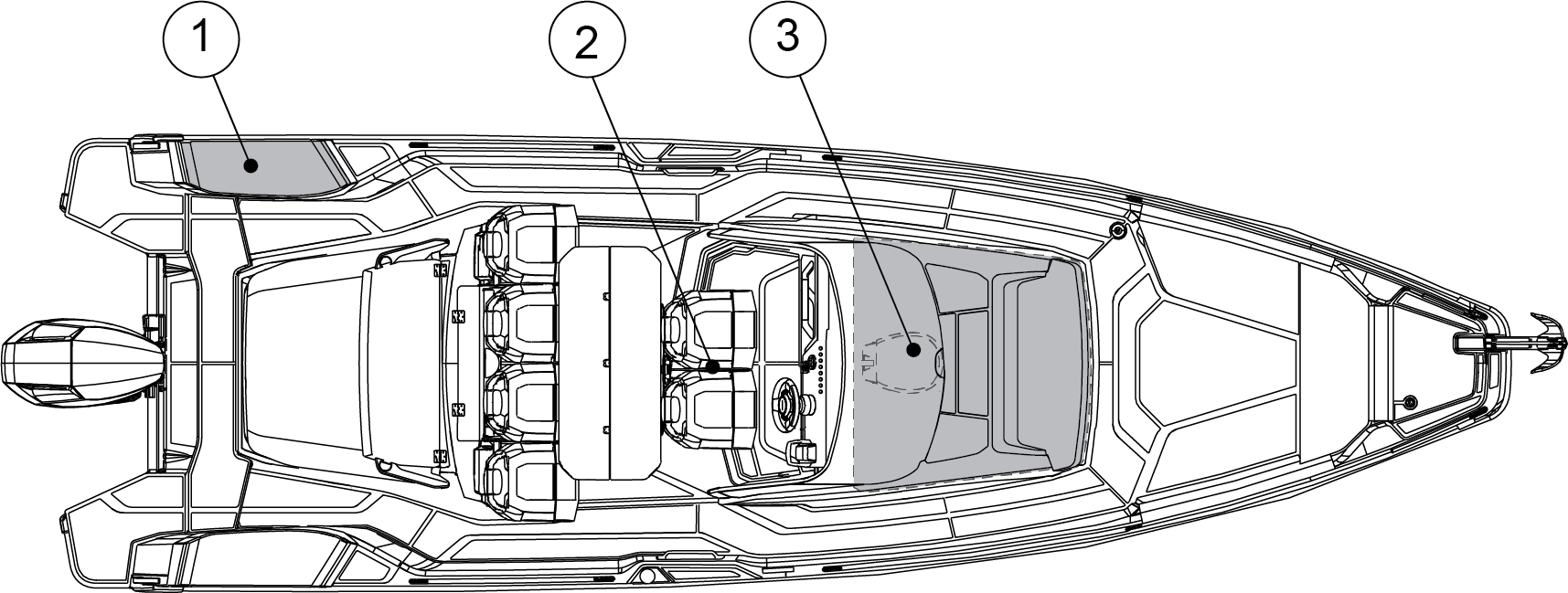

As an option, the cockpit can be equipped with seat base refrigerator and sink. In the front part of the cockpit, there is a separate multicabin with a door that opens to the front deck. The multicabin can be equipped with a toilet package and furnished with an accommodation package.

(1)

Optional fender box wet bar

(2)

Optional seatbase refrigerator and sink

(3)

Multi-cabin or optional toilet
