Risks of fire, explosion and electric shock!
Improper use of electric DC and AC systems may result in fire, explosion or electric shock.
Follow the instructions carefully.
Never modify the propulsion system, battery type or system components.

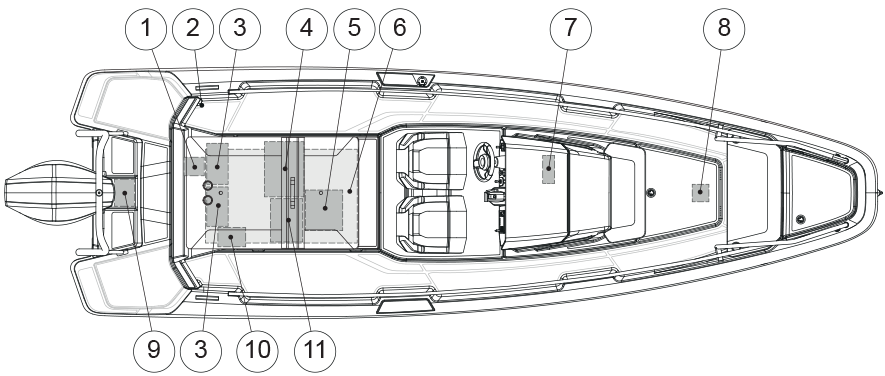

- 1
-
Main switch panel
- 2
-
Shore power inlet
- 3
-
12V batteries
- 4
-
High voltage cabinet
- 5
-
12 kW charger
- 6
-
High voltage battery (2 pcs)
- 7
-
Boat fuse panel
- 8
-
Optional bow thruster main switch and battery
- 9
-
Outboard fuses (Evoy)
- 10
-
Control system fuses (Evoy)
- 11
-
DC-DC converter
