The freshwater system consists of a freshwater tank, pump and accumulator. The boat may also be equipped with a water supply point in the galley and a deck shower and a water supply point for the wet bar.
The tank is located under front deck. The freshwater tank is filled via the inlet pipe on the foredeck.
To turn the freshwater system, switch on the freshwater pump. The pump switch is located on the fuse panel.
Switch the system off when leaving the boat. Do not forget to check filter in the pump regularly.
The dealer is responsible for disinfecting the freshwater tank before sale.
The water from the system is not meant for drinking.
The freshwater system must be thoroughly emptied for winter storage. It is not recommended to use any anti-freeze products in the freshwater system.

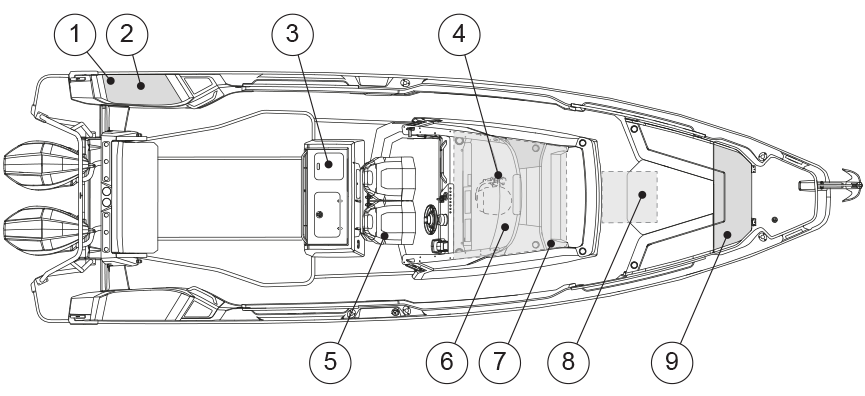

- (1)
-
Deck shower
- (2)
-
Wet bar tap
- (3)
-
Baitwell tap
- (4)
-
Freshwater pump switch
- (5)
-
Galley tap
- (6)
-
Toilet tap
- (7)
-
Freshwater pump
- (8)
-
Freshwater tank
- (9)
-
Water inlet
