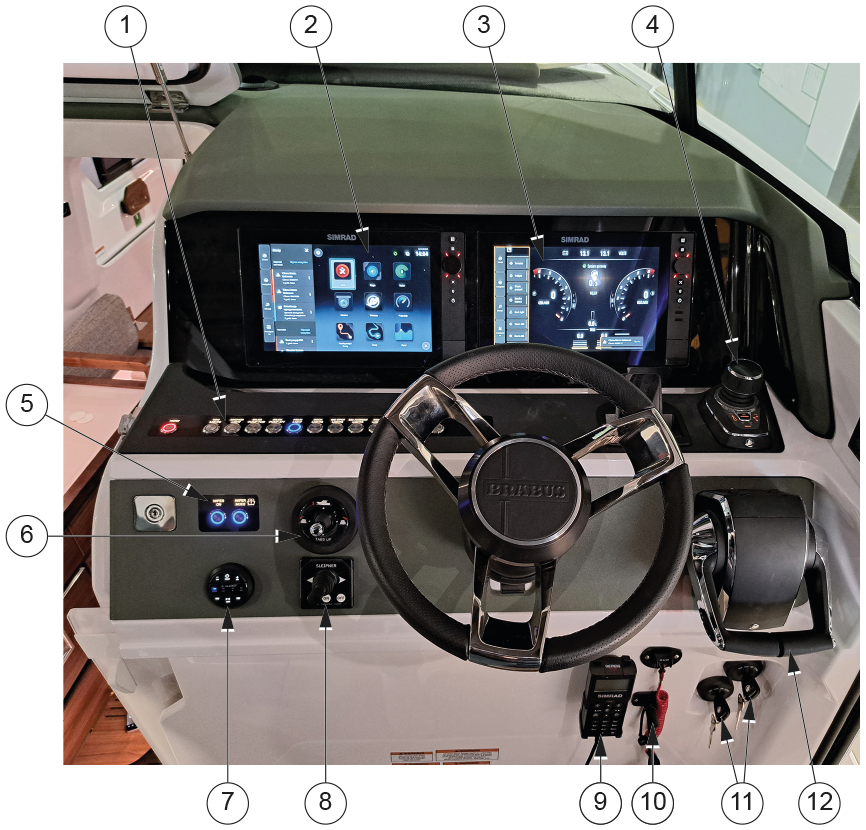

The controllers are situated so that the driver can easily manage them from the steering console.
The location and quantity of the devices depend on what optional equipment and engine models have been chosen. See the device manuals for further information on the devices.
.png)
- (1)
-
Steering console switch panel
- (2)
-
Optional chart plotter
- (3)
-
Optional chart plotter
- (4)
-
Optional joystick piloting system
- (5)
-
Trim tabs control unit
- (6)
-
Wiper control switch panel
- (7)
-
Optional audio remote
- (8)
-
Optional bow thruster control panel
- (9)
-
Optional VHF radio
- (10)
-
Emergency stop
- (11)
-
Ignition keys
- (12)
-
Engine remote control
