4.1.2 Openings in the hull and deck

There are several inlets through the boat that include valves for opening and closing such inlets. It is recommended to keep these inlets closed if the boat is out of use for a long time, and to open them again when the boat is used again. If the boat is lifted out from water or in rainy conditions, inlets should be kept open.

Always check that all hatches are securely closed before and after using the boat.

We recommend that you keep the windows, doors, deck hatches, roof hatches, vents and interior doors closed while driving. In stormy weather, always keep them securely closed to minimize the risk of water getting into the boat and to avoid any personal injuries.

In certain conditions and speeds, it is possible that water is sprayed inside through canopies, hatches or other openings, due to negative pressure or other effects. Risk for this can be minimized by closing the canopies, hatches or other openings.

All doors and hatches must be kept shut when under way.

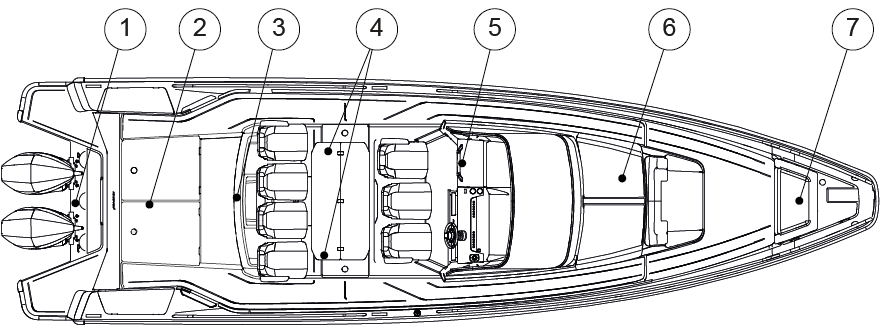

The figure shows the hatches and seacocks that must be kept closed when the boat is left unmanned. Keep hatches closed also while underway.

(1)

Inspection hatch in the engine bracket

(2)

Aft cabin roof hatches or storage box hatches

(3)

Aft cabin door

(4)

Cockpit floor hatches

(5)

Front cabin door

(6)

Gullwing doors of front cabin

(7)

Bow storage box hatch

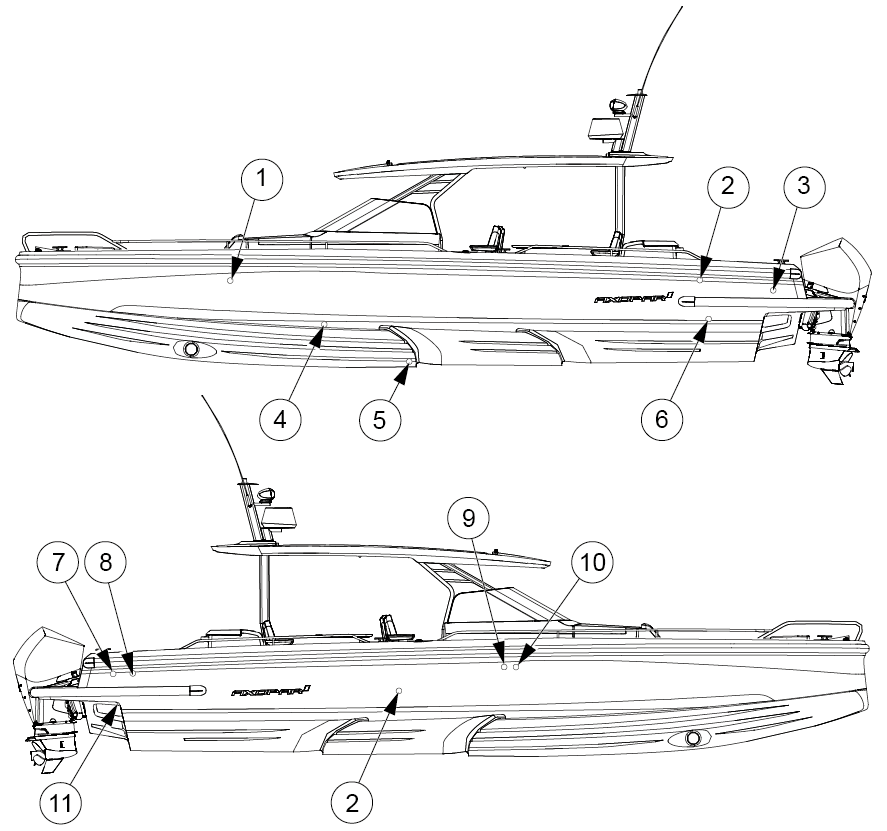

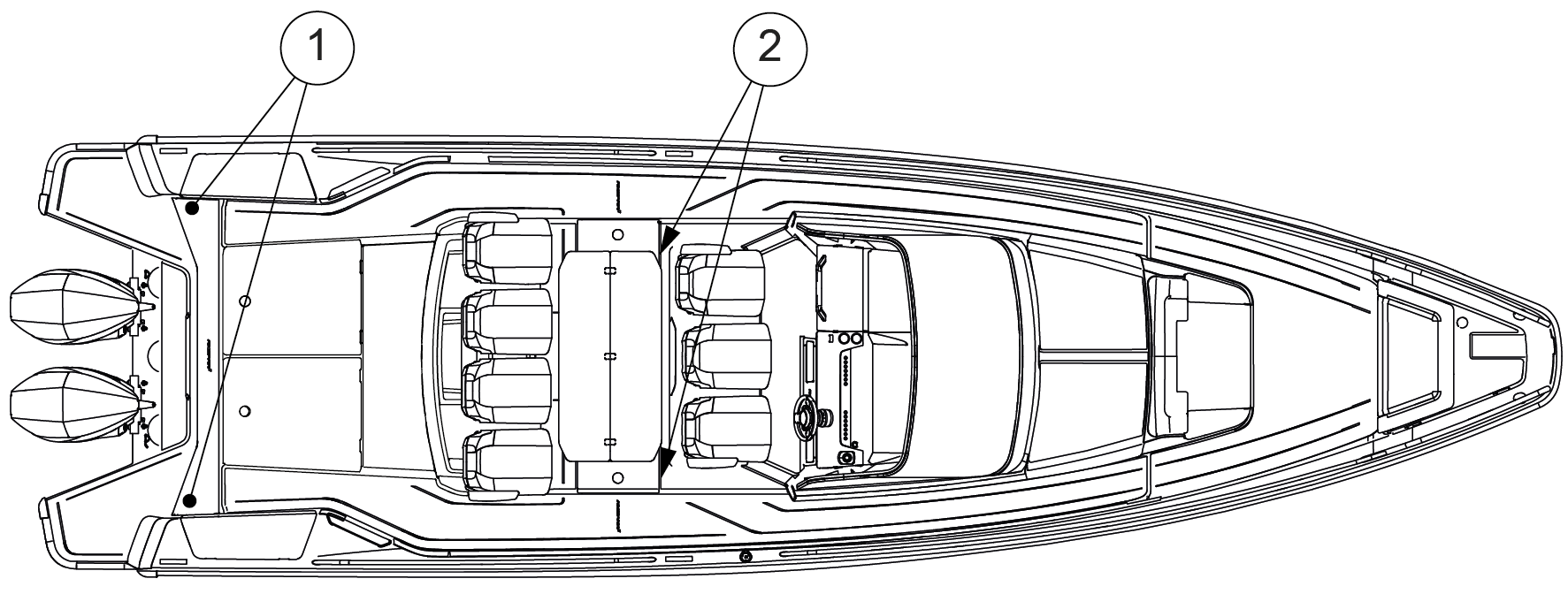

The location and number of these components depend on the level of the equipment on the boat.

(1)

Outlet of aft deck and cockpit draining seacocks

(2)

Outlet seacocks of cockpits

(1)

Fresh water tank ventilation

(2)

Fuel tank ventilation

(3)

Manual bilge pump outlet

(4)

Front cabin sink outlet

(5)

Toilet seat water inlet

(6)

Wet bar sink outlet

(7)

Aft bilge pump outlet

(8)

Heater fuel tank ventilation

(9)

Septic tank ventilation

(10)

Bow bilge pump outlet

(11)

Aft deck and cockpit draining seacocks
