6.2 Swivel seat - Driver and passenger seats

The driver and passenger seats are operated with locking handles.

The locking handles must be in the locked position before the boat speed exceed 5 knots.

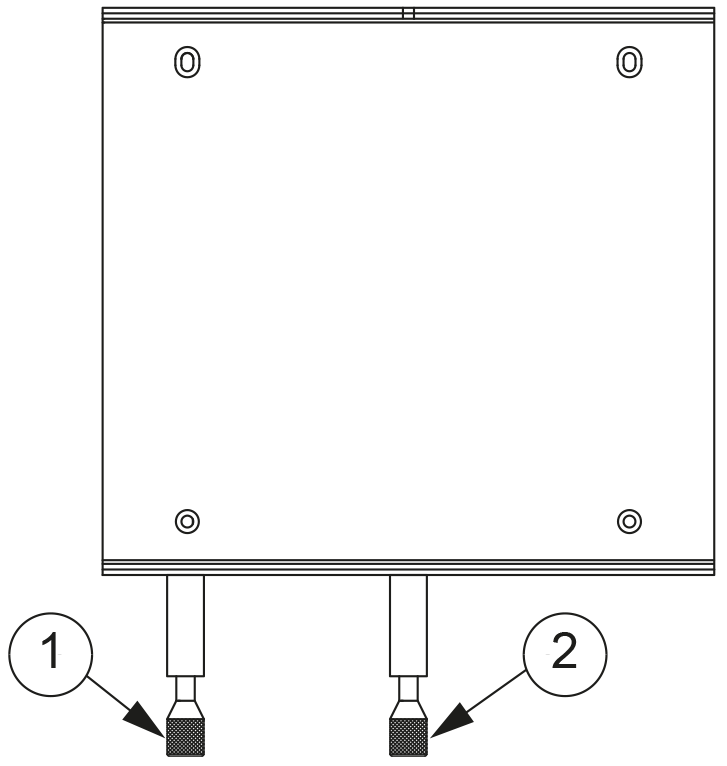

(1)

Rotation locking handle

(2)

Moving locking handle

  • For the rotating function, press the locking handle down to release the lock.

    This allows you to rotate the seat on the post.

  • For the moving function, lift the locking handle up to release the lock.

    This allows you to move seat from back to front.
