Risks of fire, explosion and electric shock!
Improper use of electric DC and AC systems may result in fire or explosion.
Improper use of electric AC systems may result in electric shock.
Follow the instructions carefully.

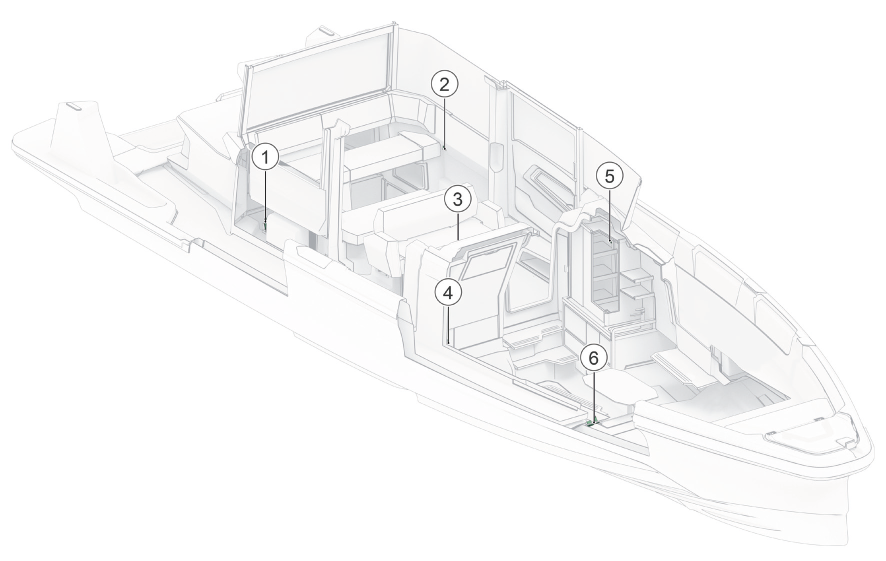

- (1)
-
USB and AC socket
- (2)
-
USB and AC socket
- (3)
-
Wireless phone charger
- (4)
-
AC socket (only without toilet compartment)
- (5)
-
AC socket
- (6)
-
USB and AC socket

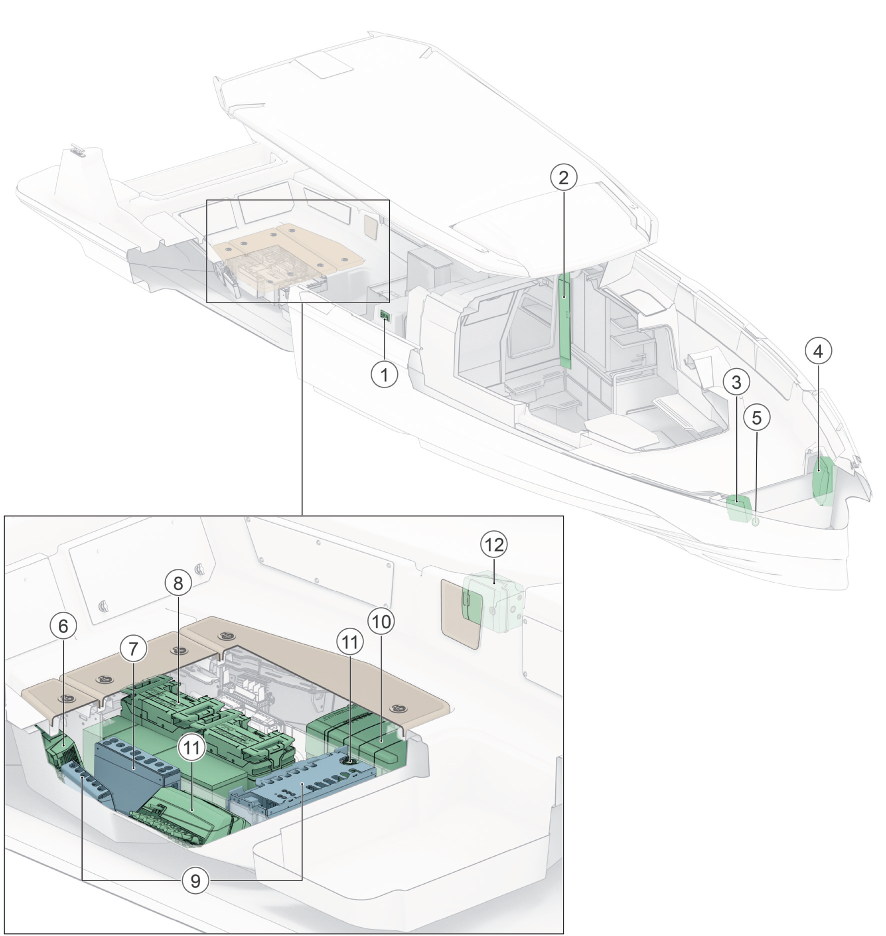

- (1)
-
Main switches
- (2)
-
DC fuse panel
- (3)
-
Shore fuse unit
- (4)
-
AC fuse unit
- (5)
-
Shorepower socket
- (6)
-
Shorepower charger
- (7)
-
Engine fuse unit
- (8)
-
Batteries
- (9)
-
Main fuse units
- (10)
-
Inverter/Charger
- (11)
-
Remote main switches
- (12)
-
Inverter fuse unit
