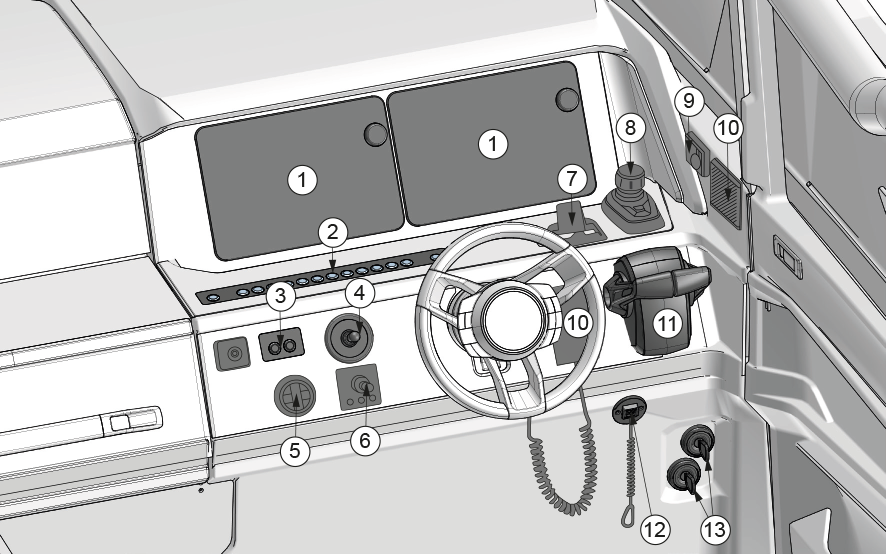

The controllers are situated so that the driver can easily manage them from the steering console.
The location and quantity of the devices depend on what optional equipment and engine models have been chosen. See the device manuals for further information on the devices.
- (1)
-
Optional chart plotter
- (2)
-
Steering console switch panel
- (3)
-
Wiper control switch panel
- (4)
-
Trim tabs control unit
- (5)
-
Optional audio remote
- (6)
-
Optional bow thruster control panel
- (7)
-
Phone charger
- (8)
-
Optional joystick piloting system
- (9)
-
Heater control unit
- (10)
-
Optional VHF radio
- (11)
-
Engine remote control
- (12)
-
Emergency stop
- (13)
-
Ignition keys
