Risks of fire, explosion and electric shock!
Improper use of electric DC and AC systems may result in fire or explosion.
Improper use of electric AC systems may result in electric shock.
Follow the instructions carefully.

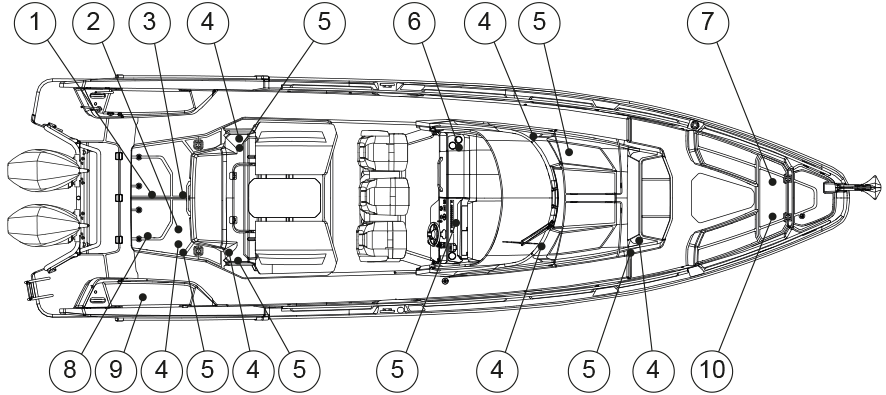

- (1)
-
Batteries
- (2)
-
Remote controlled main switches
- (3)
-
High current fuses
- (4)
-
230 V sockets
- (5)
-
USB socket
- (6)
-
Fuse panel
- (7)
-
Shorepower fuses
- (8)
-
Shorepower charger
- (9)
-
12 V output
- (10)
-
Shorepower socket

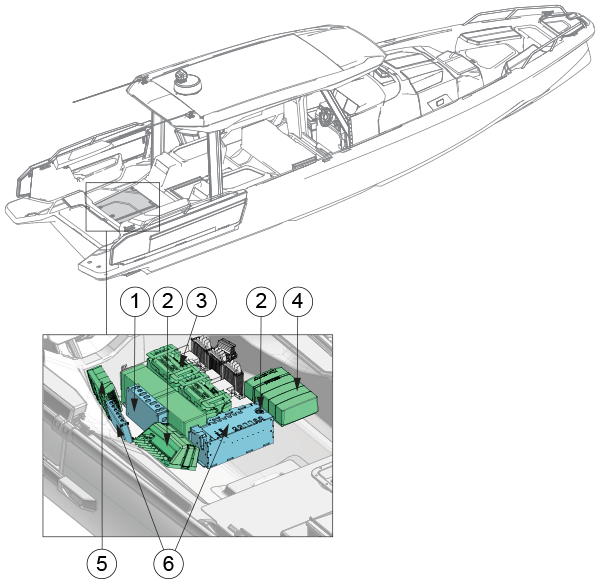

- (1)
-
Engine fuse unit
- (2)
-
Remote main switches
- (3)
-
Batteries
- (4)
-
Inverter/Charger
- (5)
-
Shorepower charger
- (6)
-
Main fuse units
