6.6.1 Fastening points

Fastening points (or cleats) are located both at the stern, midship and bow.
  • When anchoring or towing, the forward force is 37,6 kN.

  • When mooring the forward force is 30,7 kN.

  • When mooring the rearward force is 26,2 kN.

(1)

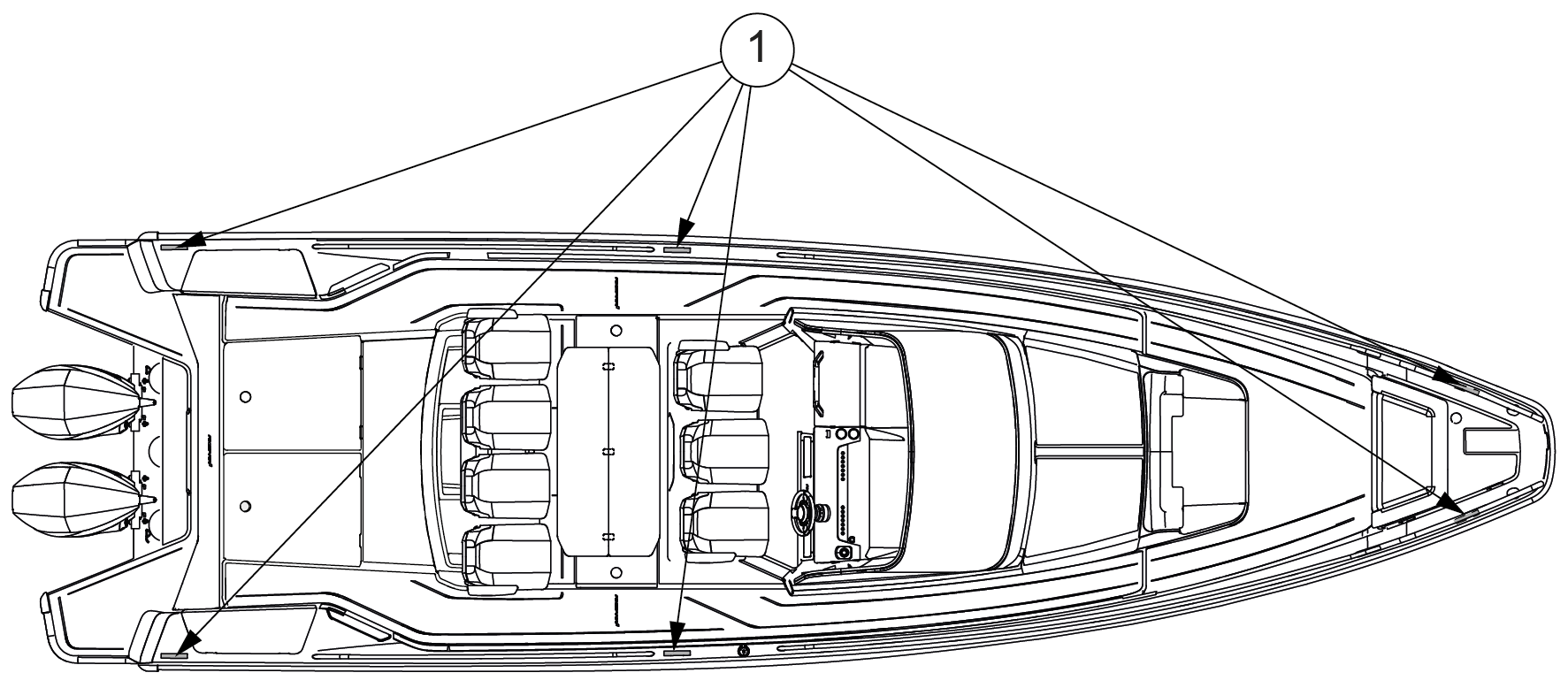

Fastening points

The breaking strength of lines shall in general not exceed 80% of the breaking strength of the fastening points.
