4.1.1. Self-draining systems

The Axopar boat is equipped with self-draining systems for the forward and aft cockpits, which include drain holes.

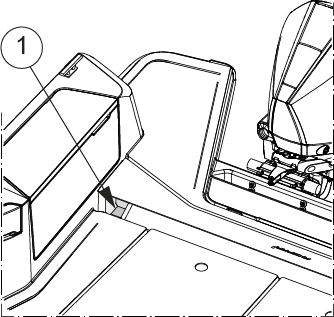

There are drain holes for water in both aft corners of the deck. The openings are directly connected to the sea. The deck of the boat has been designed to allow the water to drain straight into the sea via the water gullies.

In addition to rainwater, the drain holes are intended to drain water ending up on the deck through splashing or from breaking waves.

The drain holes must be open at all times and the holes regularly cleaned by removing any accumulated debris to prevent clogging.

The system is built so as to drain the water from the deck in normal use. Do not close the taps when using the boat or when the boat is attached to the dock.

In the cockpit and driver's floor there are draining holes on both sides of the floor. Cockpit draining holes are equipped with sea-cocks located on transom. Driver's floor drains to a container located in front of the toilet. There is a water pump that pumps water out from the container.

The self-emptying open space is meant for the removal of such water that ends up on the deck through rain, splashing or from breaking waves. A part of the rain water as well as water condensation in the bilge may end up in the bilge.

Do not leave the boat unattended in the water for a long time. Observe the floating position of the boat and empty the bilge when necessary. Leaving the boat unattended in the water for a long time may cause damage.

Do not close the drain holes when using the boat.
