6.6.1. Fastening points

Fastening points (or cleats) are located both at the stern, midship and bow.

When anchoring or towing, the forward force is 32,2 kN.
When mooring the forward force is 26,3 kN.
When mooring the rearward force is 22,5 kN.

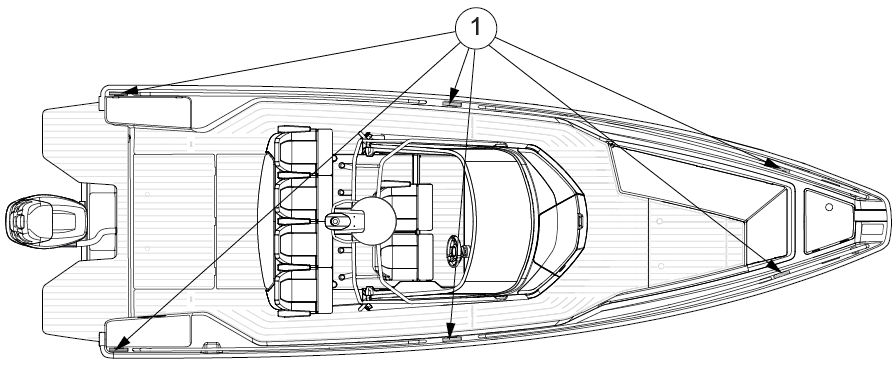

(1): Fastening points
